Dail Type Air Gauge Units

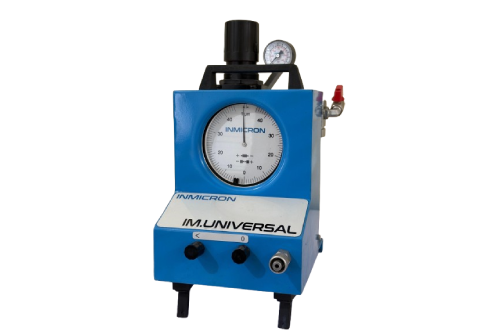

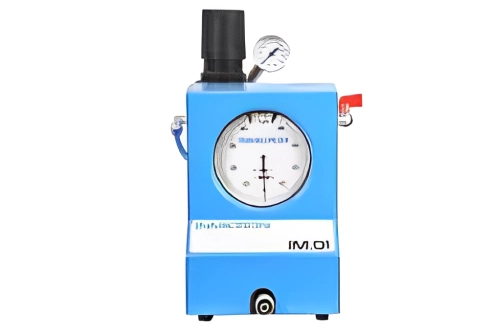

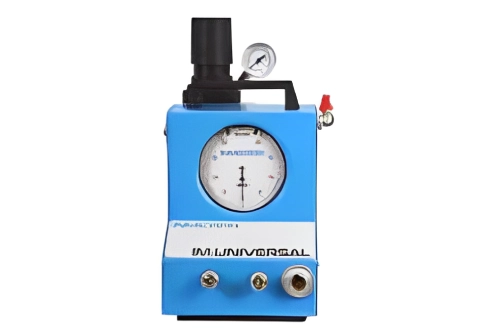

A Dial Type Air Gauge Unit combines the principles of air measurement with a dial gauge for indicating measurements. It uses air pressure to detect the gap between a probe and the surface of a workpiece, and the results are displayed on a dial gauge, making it an easy-to-read, direct measurement system. These units are often used in precision measurement applications where high accuracy is required for inspecting internal and external dimensions of workpieces.
Uses of Dail Type Air Gauge Units:
Dial type air gauges are commonly used to measure the internal and external diameters of cylindrical parts, such as shafts, rods, pins, tubes, and bushings. The air pressure or airflow through a gap is directly proportional to the dimension of the workpiece. This allows for quick and accurate measurement of diameters.
These gauges can also be used to measure lengths or depths of parts or holes, especially when dealing with features such as grooves or slots. The air gauge measures the distance between the probe and the workpiece, and the dial shows the measurement directly.
Dial type air gauges are ideal for checking tolerances and ensuring that parts will fit correctly within an assembly. For example, these gauges can verify that parts like shafts fit into bearings, pins fit into holes, or rings fit over shafts. Ensuring that parts fit properly is crucial for avoiding assembly problems and ensuring functionality.
Air gauges can be used to check the roundness or cylindricity of parts. By measuring the internal and external diameters of the same part at various points, the air gauge can detect any out-of-roundness. This is particularly important for parts like bearings, gears, or pistons, where uniform shape is critical.
In addition to roundness, dial type air gauges can help detect ovality (non-circular shapes) in cylindrical parts. By measuring the dimensions in different orientations, you can identify ovality that could cause performance issues in fitting parts.
These gauges are particularly useful for measuring the thickness of thin-walled parts such as tubes or pipes. The non-contact nature of air gauges makes them ideal for these applications because there’s no risk of deforming the part during measurement.
Dial type air gauges can be integrated into automated systems on production lines for continuous in-line measurement of parts during manufacturing. They can quickly check parts as they are produced to ensure they meet required specifications and tolerances, improving overall production efficiency.
These gauges are used for inspecting bearing seats or housings to ensure that the diameters are within the specified tolerance range for proper fitment of bearings or other cylindrical components.
Dial air gauges can be adapted with specific probes to measure groove depths or widths in parts, which is crucial for parts like seals, gaskets, or keyways.
These gauges are also used in the calibration of machinery such as CNC machines, lathes, or grinders. They provide a quick and reliable means to verify that machinery is producing parts with the correct dimensions.
Advantages of Dial Type Air Gauge Units:
One of the key advantages of dial type air gauges is that they provide non-contact measurement. The gauge uses air to detect the gap between the probe and the workpiece, eliminating the risk of damage or wear to either the part or the tool. This is especially beneficial when measuring delicate or sensitive parts that could be deformed by contact.
These gauges offer high precision and accuracy, making them ideal for applications that require strict tolerances. They can detect even minute deviations in dimensions, ensuring that parts meet the exact specifications required, which is critical in industries like aerospace, automotive, and medical devices.
The dial gauge provides a direct, easy-to-read measurement of the workpiece. The measurements are displayed in clear, readable units (typically micrometers or thousandths of an inch), which makes it easy for operators to take precise readings without complicated calculations or conversions.
Dial type air gauges allow for fast measurement cycles, which is essential for high-volume production environments. The ability to quickly check parts helps to reduce production downtime and improves overall efficiency in quality control processes.
Since there is no physical contact between the probe and the workpiece, the risk of wear on both the gauge and the part is minimized. This leads to longer tool life and reduces the cost of maintenance and tool replacement.
These gauges are versatile and can be adapted to measure a wide range of part sizes and types. They can be used to measure not only diameters, but also groove depths, slot widths, thicknesses, and even roundness or cylindricity. With different probes or adaptors, the gauge can be customized for various applications.
Dial type air gauges are typically compact and lightweight, making them easy to use in confined spaces or on smaller workpieces. Their portability makes them ideal for both shop-floor inspections and portable measurements in the field.
Once properly calibrated, the air gauge can deliver consistent and repeatable measurements without the need for constant recalibration, which saves time and effort in routine inspections.
For mass production environments, where large quantities of parts need to be measured, the speed and accuracy of dial type air gauges make them a cost-effective solution. Their quick operation helps to streamline quality control processes and minimize the cost of labor for manual inspections.
Dial type air gauges can also be used to detect wear or variations in parts over time. For example, if the diameter of a part increases or decreases due to wear or manufacturing issues, the dial gauge will reflect these changes, helping to identify problems before they result in defective parts.
Because air gauges have no moving parts that directly contact the part, they require minimal maintenance compared to mechanical gauges or measuring tools. This reduces downtime for maintenance and contributes to a more reliable measurement process.
The non-contact nature of dial air gauges makes them perfect for measuring delicate parts or those with sensitive surfaces (e.g., parts made of soft metals or composites). They won’t damage or alter the workpiece during the measurement process, which is especially important for precision components.
Dial type air gauges can be integrated with automated inspection systems. In production lines, they can automatically measure and verify the dimensions of parts, feed the data into a central system, and even sort parts based on whether they meet quality standards. This improves throughput and ensures real-time quality control.
The dial gauge display offers immediate feedback to operators, allowing them to make real-time decisions about whether parts need to be adjusted or scrapped. This quick feedback is crucial in high-speed manufacturing environments to maintain quality and minimize waste.
Conclusion:
Dial type air gauge units are highly accurate, versatile, and easy-to-use measuring tools that are invaluable for high-precision measurements in high-volume production environments. They offer numerous advantages, such as non-contact measurement, high precision, easy readability, and quick measurement cycles, which make them particularly suited for inspecting internal and external diameters, tolerances, roundness, and other key dimensions. These gauges reduce the risks of wear, damage, and operator error, while providing consistent, reliable, and repeatable results. Whether used for quality control, calibration, or automated inspection, dial type air gauges are a powerful tool in ensuring parts meet the required specifications with speed and accuracy.
